echnical Specifications
Mains Voltage: 230VAC
Mains Frequency: 50/60Hz
Power Factor: >0.9
Efficiency: >90%
Operating Frequency: 40-60KHz

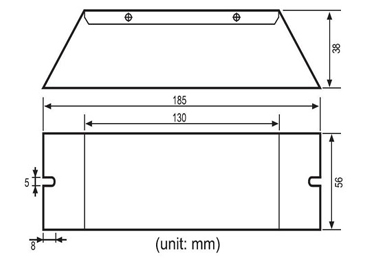

Dimensions: 185*56*38mm
Installation Requirement
Wire Gauge: 0.5-1.0mm2
Max. cable length between ballasts and lamp: 5m
LED specification: Vf=1.8-3.6V If=5-20mA
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.

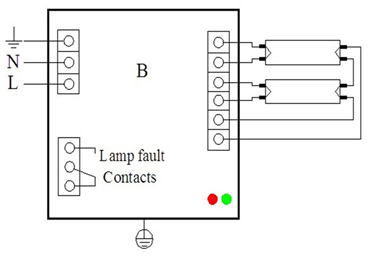

Don’t short any two wires of the four outputs.
Features
Starting: Preheat
Lamp status indication via DC signal output
DC 5V±5% （5mA）: lamp on.
DC 0V: lamp fault or no lamp.
Connect LED.
Applications
Air purification
Industrial water treatment
Kitchen purification
|
Type
|
Input Voltage (V)
|
Input Power
(W)
|
Input Current (A)
|
Power Per Lamp
(W)
|
Lamp Current (A)
|
Weight (kg)
|
|
PA7-800-95
|
198-264
|
62.5-108
|
0.51A@230V
|
35-95
|
0.75-0.85
|
0.27
|
