Technical specifications
Power Factor:>0.5
Efficiency:>80%
Operating Frequency:40-60kHz

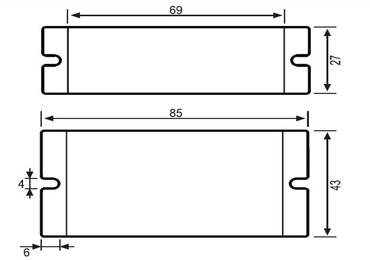

Dimensions:85*43*27mm
Input line length:330mm
Output line length:330mm
Signal line length:330mm
Installation requirement
Wire Gauge:0.5-1.0mm2
LDE specification:VF=1.8-3.6V IF=20-50mA
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case must Be Grounded.

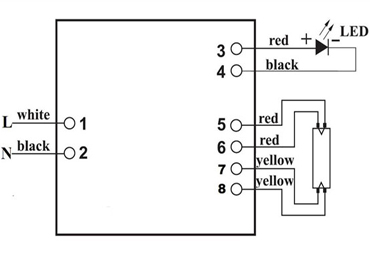

Don’t short any two wires of the four outputs.
For applications with less than one
Switch-on cycle per day
(other otherwise preheat start ballasts are recommended)
Features
Starting:Rapid
Lamp status indication via DC signal output.
DC5V±5% 5mA:lamp on.
DC 0V:lamp fault or no lamp.
Applications
All areas of applications include UV lamps:
Air purification
Aquarium
Domestic drinking water
|
Type
|
Input Voltage(V)
|
Input Power(W)
|
Input Current(A)
|
Power Per Lamp(W)
|
Lamp Current(A)
|
Weight(kg)
|
|
PD15-350-15
|
198-264
|
18.7
|
0.16A@230V
|
15
|
0.30-0.35
|
0.15
|
