Technical specifications
Mains Voltage:230VAC
Mains Frequency:50/60Hz
Power Factor:>0.97
Efficiency:>90%
Operating Frequency:40-60kHz
Starting:Rapid

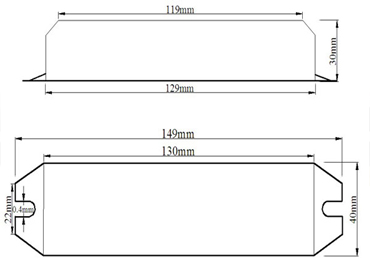

Dimensions:149*40*30mm

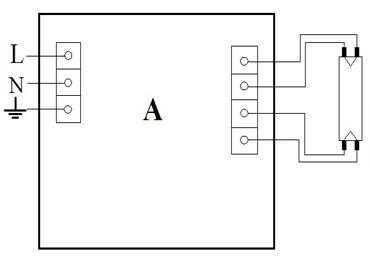

Installation requirement
Wire Gauge:0.5-1.0mm2
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Don’t short any two wires of the four outputs.
|
Type
|
Input Voltage(V)
|
Input Power(W)
|
Input Current(A)
|
Power Per Lamp(W)
|
Lamp Current(A)
|
Weight(kg)
|
|
PD33-300-218
|
198-264
|
40
|
0.20A@230V
|
1*30-40
2*14-18
|
0.3
|
0.15
|
