EVG2×​[30-50]W-425mA UV ballast

Mains Voltage:110/240VAC

Mains Frequency:50/60Hz

Power Factor:>0.98

Efficiency:>92%

Operating Frequency:40-60kHz

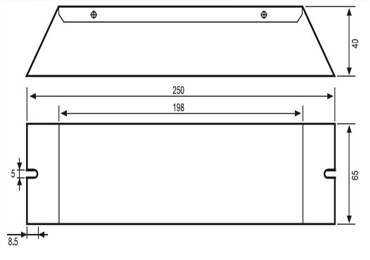

Dimensions:250*65*45mm

Lamp status indication via LED indication

Green LED:Lamp on

Red LED:Lamp fault

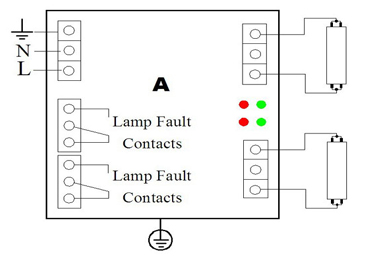

Lamp status forwarding

Potential free relay contacts for lamp on/lamp fault.

Installation requirement

Wire Gauge:0.5-1.0mm2

Max.cable length between ballasts and lamp:5m

Relay contacts:potential free,load:

50…500mA at 24…230VAC;50…500mA at 5…60VDC

Mounting restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case must Be Grounded.

Don’t short any two wires of the four outputs.

For applications with less than one

Switch-on cycle per day

(other otherwise preheat start ballasts are recommended)

Lamp filament must be suitable for instant start

operation,need confirm with lamp manufacturer.

Features

Starting:Instant

Applications

All areas of applications include UV lamps

Air purification

Industrial water treatment

Kitchen purification
