EVG65-80W/1.5A UV Ballast

Mains Voltage: 110/240VAC

Mains Frequency: 50/60Hz

Power Factor: >0.98

Efficiency: >90%

Operating Frequency: 40-60KHz

Dimensions: 185*56*38mm

Lamp status indication via LED indication

Green LED: lamp on

Red LED: lamp fault

Lamp status forwarding

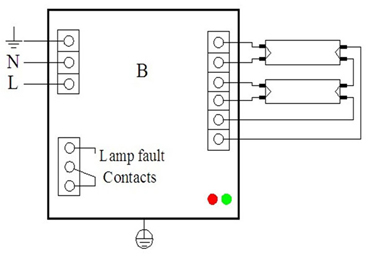

Potential free relay contacts for lamp on/lamp fault.

Installation Requirement

Wire Gauge: 0.5-1.5mm²

Max. cable length between ballasts and lamp: 5m

Relay contacts: potential free, load: 50…500mA at 24…230V AC;

                                50…500mA at 5…60V DC

Mounting Restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case Must Be Grounded.

Don’t short any two wires of the four outputs.

Features

Starting: Preheat

Add buzzer function

Buzzer function: the buzzer will sound when the lamp fault

UV lamp can be connected to external LED.

Applications

All areas of applications include UV lamps.

Air purification

Industrial water treatment

Kitchen purification
