S-EVG20W/600mA-PH -4 electronic Ballast

Mains Frequency: 50/60Hz

Efficiency: >90%

Operating Frequency: 40-60KHz

Dimensions: 165*38*29mm

Installation Requirement

Wire Gauge: 0.5-1.0mm²

LED specification: V_f=1.8-3.6V I_f=20-50mA

Mounting Restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case Must Be Grounded.

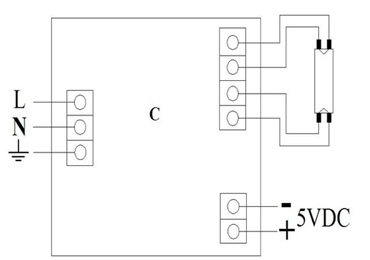

Don’t short any two wires of the four outputs.

Features

Starting: Preheat

Lamp status indication via DC signal output.

DC5V 5mA: lamp on.

DV0V: lamp fault or no lamp.

Applications

All areas of applications include UV lamps.

Air purification

Aquarium

Industrial water treatment
