EVG2*300W/2.1A-PHplus B1 UV ballast 198-305V

Technical specifications

Mains voltage:230VAC

Power Factor:>0.98

Efficiency:>94%

Operating Frequency:28-80kHz

Starting:Preheat

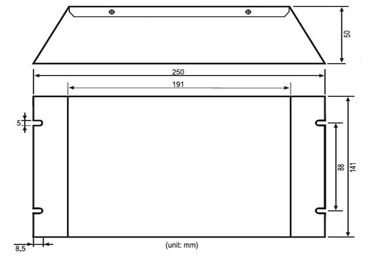

Dimensions:250*141*50mm

Lamp status indication via LED indication

Green LED:Lamp on

Red LED:Lamp fault

Lamp status forwarding

Potential free relay contacts for lamp on/lamp fault..

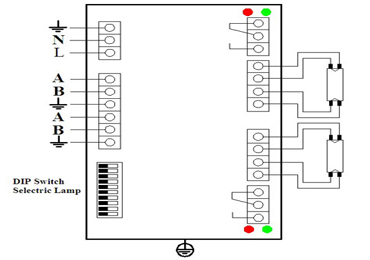

Installation requirement

Wire Gauge:0.5-1.5mm2

Max.cable length between ballasts and lamp:5m

Relay contacts:potential free,

Load:50…500mA at 24…230V AC;

     50…500mA at 5…60V DC

Mounting restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case must Be Grounded.

Don’t short any two wires of the four outputs.

Features

RS485 dimmable function:

The lamp power can be adjusted from 60% to 100%.
