Technical
specifications
Mains voltage:220V/240V
AC
Mains Frequency：50/60Hz
Power
Factor:>0.98
Efficiency:>90%
Max. Input Power:
425W
Max. Input
Current: 1.85A@230V
Preheat Start

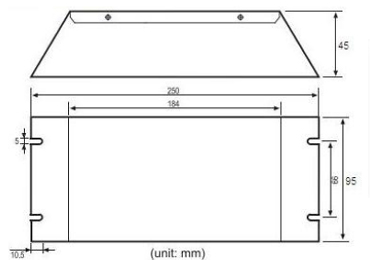

Dimension:
250*95*45mm
IP20 class
Working
Temperature: -15-40℃
Lamp status
indication via LED indication
Green LED:Lamp on
Red LED:Lamp
fault
Lamp status
forwarding
Potential free
relay contacts for lamp on/lamp fault..

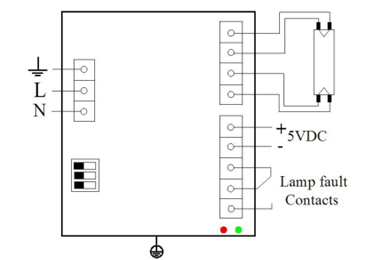

Installation
requirement
Wire Gauge:0.5-1.5mm2
Max.cable length
between ballasts and lamp:5m
Relay
contacts:potential free,
Load:50…500mA at
24…230V AC;
50…500mA
at 5…60V DC
Mounting
restrictions
Disconnect Input
Power Before Installing or Servicing.
Ballast Case must
Be Grounded.
Don’t short any
two wires of the four outputs.
Applications
All areas of
applications include UV lamps:
Air purification
Municipal water
treatment
Industrial water
treatment
Water injection
for oilfield
|
Type
|
Input
Voltage(V)
|
Input Power(W)
|
Input
Current(A)
|
Power Per
Lamp(W)
|
Lamp Current(A)
|
Weight(kg)
|
|
EVG270W/3.8A
|
198-305
|
425
|
1.85A@230V
|
200-400
|
1.8-3.8
|
0.83
|
